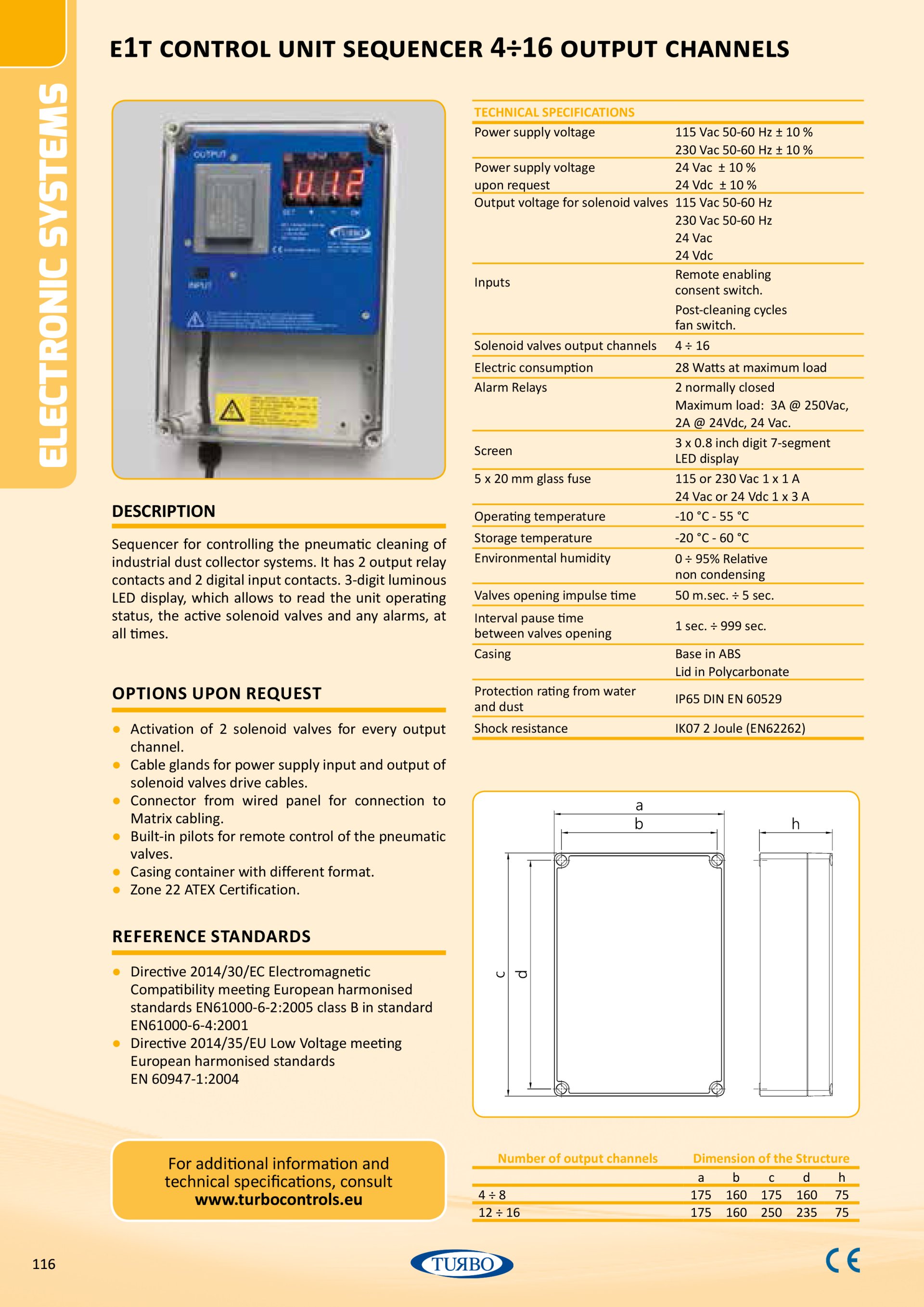

E1T control unit sequencer 4÷16 output channels

คุณสมบัติสินค้า:

e1t ตู้คอนโทรลไฟฟ้าตั้งเวลาหรือ (Timer Control Valve) งานระบบกำจัดฝุ่นในโรงงานอุตสาหกรรม Dust Collector

แบรนด์ : CB

Share






E1T control unit sequencer 4÷16 output channels

Power supply voltage 115 Vac 50-60 Hz ± 10 %
230 Vac 50-60 Hz ± 10 %
Power supply voltage 24 Vac ± 10 %
upon request 24 Vdc ± 10 %
Output voltage for solenoid valves 115 Vac 50-60 Hz
230 Vac 50-60 Hz
24 Vac
24 Vdc
Inputs Remote enabling
consent switch.
Post-cleaning cycles
fan switch.
Solenoid valves output channels 4 ÷ 16
Electric consumption 28 Watts at maximum load
Alarm Relays 2 normally closed
Maximum load: 3A @ 250Vac,
2A @ 24Vdc, 24 Vac.
Screen 3 x 0.8 inch digit 7-segment
LED display
5 x 20 mm glass fuse 115 or 230 Vac 1 x 1 A
24 Vac or 24 Vdc 1 x 3 A

Operating temperature -10 °C - 55 °C
Storage temperature -20 °C - 60 °C
Environmental humidity 0 ÷ 95% Relative
non condensing
Valves opening impulse time 50 m.sec. ÷ 5 sec.
Interval pause time
between valves opening 1 sec. ÷ 999 sec.
Casing Base in ABS
Lid in Polycarbonate
Protection rating from water
and dust IP65 DIN EN 60529
Shock resistance IK07 2 Joule (EN62262)

DESCRIPTION

Sequencer for controlling the pneumatic cleaning of
industrial dust collector systems. It has 2 output relay
contacts and 2 digital input contacts. 3-digit luminous
LED display, which allows to read the unit operating
status, the active solenoid valves and any alarms, at
all times.

OPTIONS UPON REQUEST

Activation of 2 solenoid valves for every output
channel.
● Cable glands for power supply input and output of
solenoid valves drive cables.
● Connector from wired panel for connection to
Matrix cabling.
● Built-in pilots for remote control of the pneumatic
valves.
● Casing container with different format.
● Zone 22 ATEX Certification

REFERENCE STANDARDS

Directive 2014/30/EC Electromagnetic
Compatibility meeting European harmonised
standards EN61000-6-2:2005 class B in standard
EN61000-6-4:2001
● Directive 2014/35/EU Low Voltage meeting
European harmonised standards
EN 60947-1:2004

No.DescriptionDownload pdf
1e1t control unit sequencer 4÷16 output channels
