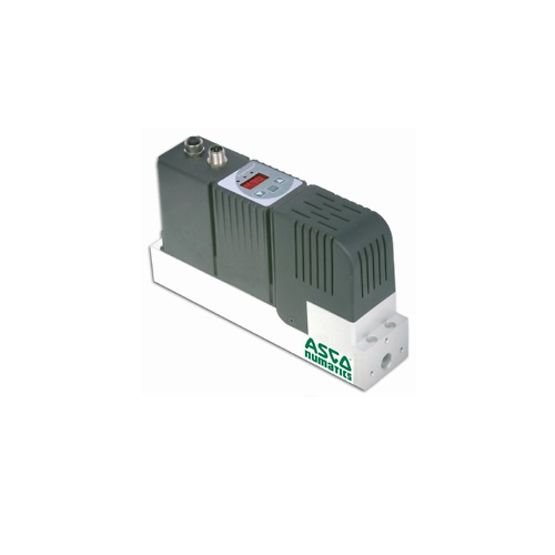

ASCO™ Numatics Series 607 Flowtronic

คุณสมบัติสินค้า:

The ASCO Numatics Series 607 FlowtronicD is a line of proportional valves with pressure sensor units and digital control electronics. Valve control loop parameters can be optimized for the application with easy-to-use FlowCom software. The Numatics Series 607 valves are designed for applications with continually varying flow requirements. Typical applications include paint coating, mixing of gases in process control, packaging and food processing, surface finishing and materials coating, burner control systems, and fuel cell technology

เลือกขนาดของเกลียว ที่ต้องการ

หมวดหมู่ : ASCO Valve Proportional Valves

Share

ASCO series 607 FlowtronicD is a digitally operated flow control valve for gases
up to 1000 l/m. It consists of a fast, direct operated 2-port proportional valve
and a control unit which contains all the control electronics and sensors. The
FlowtronicD offers precise flow adjustment and responds to outside influences
within no time at all.

Specifications

Valve Actuation
Proportional
Pipe / Port Size
1/4 "; 1/2 "; 3/8 "
Port Type
G ISO228/1-G BSPP, NPTF
Function
2 way - 2/2 Normally Closed
Flow
From 0.5 Cv to 1.0 Cv, From 1.0 Cv to 2.0 Cv
Operating Environment
Indoor
Media
Air, Inert Gas, Oxygen
Features
Quick response times to control volumetric flow rate
Direct proportional coil provides high sensitivity
Application customization with FlowCom software (included)
Easy change of control parameters
Controls flow despite external influences such as fluctuating inlet pressure
Fast response time: < 200 ms

ASCO™ Numatics Series 607 Flowtronic
