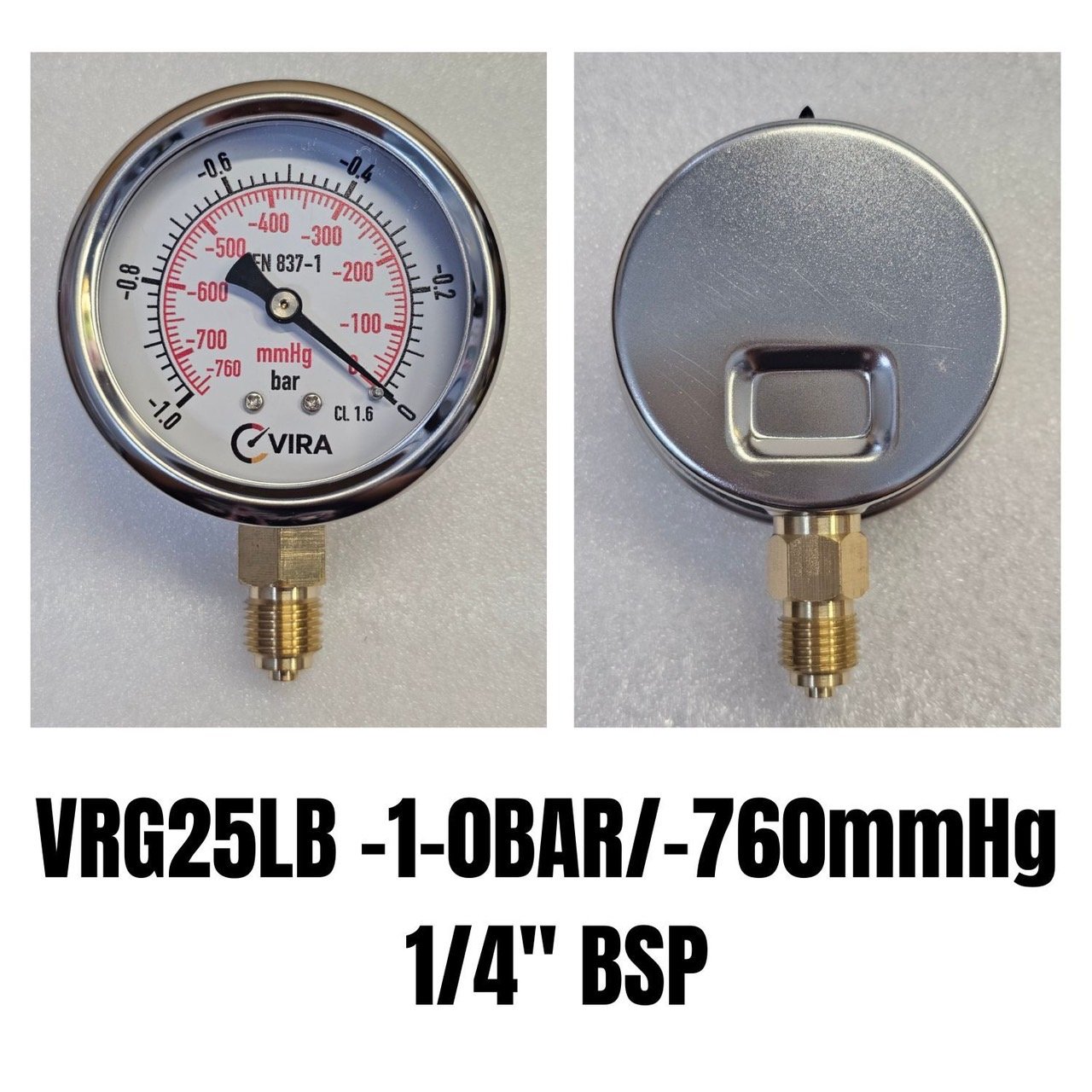

-1-0 Bar(-760mmHg) Ø 2.5" Brass Lower 1/4"BSP

NO.	Description	Type
1	Data_Sheet_VIRA	PDF

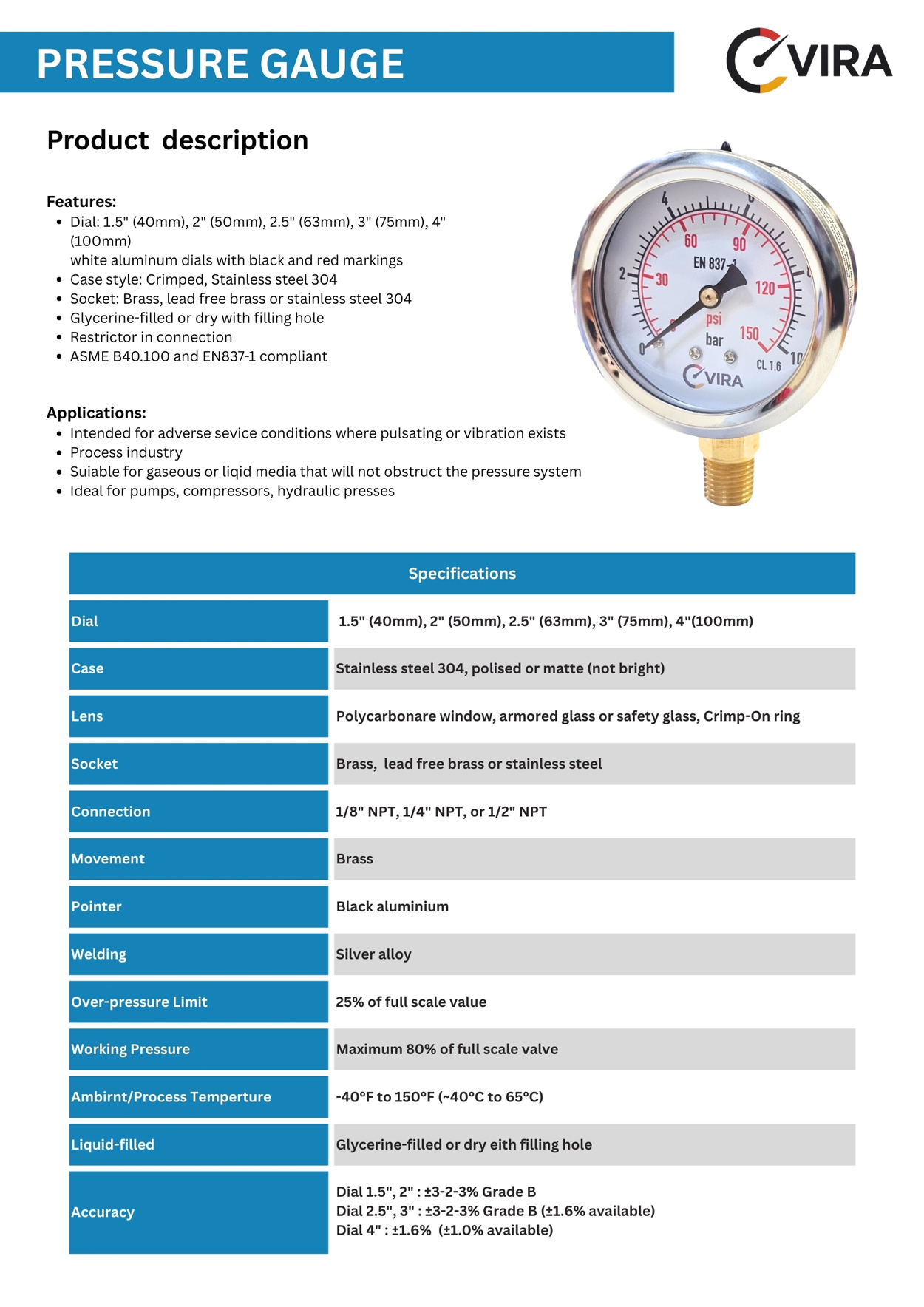

Bourdon tube pressure gauges anti-vibration version
Dial 1.5"(40mm), 2"(50mm), 2.5"(63mm), 3"(75mm), 4"(100mm)

Features:
white aluminium dials with black and red markings
Case style: Crimped, Stainless steel 304
Socket: Brass, lead free brass or stainless steel 304
Glycerine-filled or dry with filling hole
Restrictor in connection
ASME B40.100 and EN837-1 compliant

Applications:
Intended for adverse service conditions where pulsating or vibration exists
Process industry
Suitable for gaseous or liquid media that will not obstruct the pressure system
Ideal for pumps, compressors, hydraulic presses

Specifications:
Dial 1.5":(40mm), 2"(50mm), 2.5"(63mm),3"(75mm), 4"(100mm)
Case : Stainless steel 304, polised or matte (not bright)
Lens : Polycarbonate window, armored glass or safety glass, Crimp-On ring
Socket : Brass, lead free brass or stainless steel
Connection : 1/8"NPT, 1/4"NPTor 1/2"NPT,BSP
Movement : Brass
Pointer : Black aluminium
Welding : Silver alloy
Over-pressure Limit : 25% of full scale value
Working Pressure : Maximum 80% of full scale value
Ambient/Process Temperature : -40° F to 150° F (-40° c to 65°C)
