หมวดหมู่ : SDPC pneumatic ,  Pilot วาล์วลม ,  4A Single Pilot 5/2 ,
แบรนด์ : SDPC
Product description

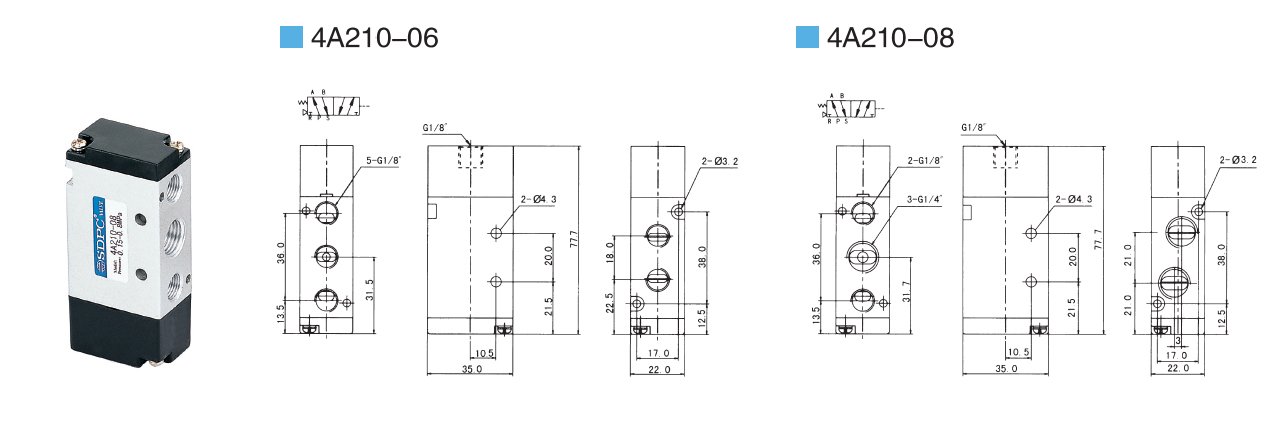

Model | 4A210-08 เกลียว 1/4" |
Type | 5 Position 2Way (5/2) |
Series | 4A single Pilot |
symbol | |
Portsize | Inlet, Outlet, |
Working Media | Air |
Action Mode | Pilot Operated |
structure | Spool valve |
Working Pressure rang | 0.15~0.8 MPa ( 1.5~8 Bar) |
MAX Pressure | 1.0MPa ( 10Bar ) |
Working Temperature | 0~60°C |
Protection Class | IP65 |
Max.Operating Frequency | 5 Cycle/Sec. |
Body | Aluminum Alloy |
Min.Excitation Time | 0.05 Sec |
Seal Ring | O Ring NBR |
